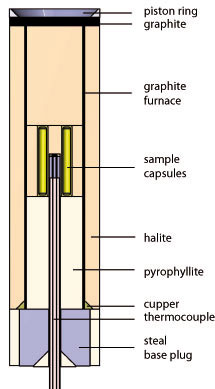

To investigate the pressure/temperature regime of the Earth´s crust and shallow parts of the upper mantle, at the GFZ three piston cylinder presses are installed and run. Two of the three presses are non-endloaded piston cylinder apparatus ("Johannes-type"), with which pressures up to 2.1 GPa and temperatures up to 1400°C can be reached. Salt/graphite- or natural fluorite/graphite-assemblages (latter for temperatures larger 800°C) are of 2.2 cm diameter. Pressures were calibrated according the equilibrium albite = jadeite + α-quartz. For experiments in the pressure range 2.0-5.0 GPa an endloaded piston-cylinder press ("Boyd & England-type") is used for temperatures up to 1650°C. For pressures up to 4.0 GPa salt/graphite-, salt/steel (as furnace material)-or pyrex-glass/pyrophyllite/graphite (for temperatures higher than 1000°C)-assemblages are of 1.27 cm (1/2 inch) diameter; for higher pressures 0.8 cm diameter salt/graphite-assemblages are used. Largest dimensions of precious metal capsules, natural or synthetic materials are welded within, are of 10 mm length and 6 mm in diameter. Variable experimental designs (e.g. up to four capsules in one run, buffered experiments) are possible. Pressure calibration is relied to the a-quartz -coesite transition. Temperatures are monitored by Ni/CrNi- or Pt/PtRh-thermocouples for both types of apparatus.
Contact:
Dr. Bernd Wunder

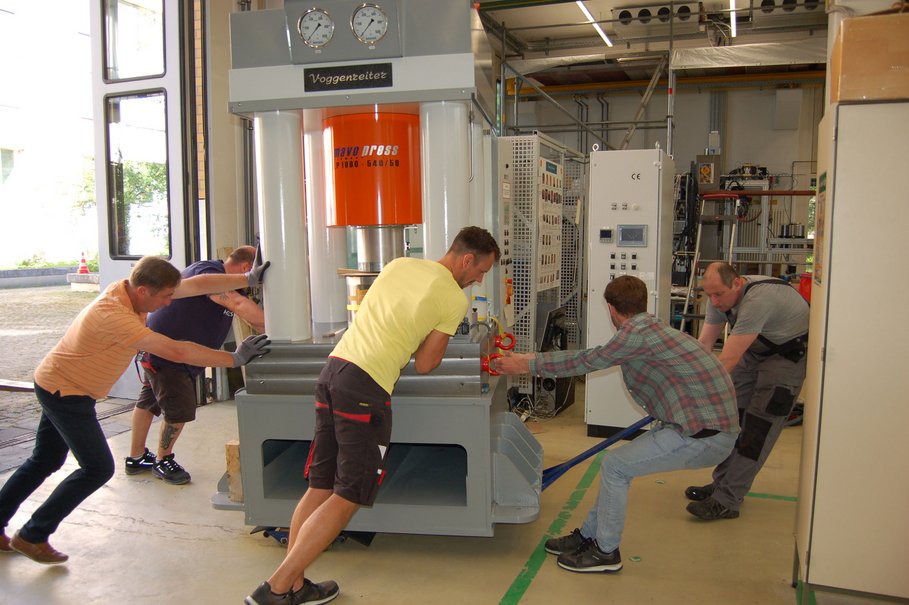

The static 1000t laboratory press of Max Voggenreiter GmbH can be operated either with a walker module as a multi anvil press or via a second hydraulic cylinder with a piston cylinder module (diameter 12.7 mm).
Contact:
Dr. Christian Lathe
Dr. Bernd Wunder
Andreas Ebert
A Rotating Multi-Anvil Press constructed by Max Voggenreiter GmbH is installed in the high-pressure hall of the GFZ. The apparatus consists of an 800 tons hydraulic press and a Walker-type multi-anvil module. The whole apparatus is rotatable by 360° perpendicular to the press axis. Schmidt and Ulmer (2004) demonstrated that by rotation it is possible to overcome common fluid/solid or melt/solid separation during high-pressure experiments. The press covers the pressure range 3.0-23.0 GPa, corresponding to earth's depths of circa 100-650 km, thus allowing the study of geomaterial properties and geochemical processes at mantle conditions.
Technical Specifications:
- 32-mm cubes WC
- TEL sizes 11, 8 and 5
- Prefabricated MgO Octahedra with Cr2O3
- Pressure range operated 3.5 - 23 GPa
- Typ C thermocouples
- Graphite and Rhenium-heater
- Temperature range operated up to 2000°C
Contact:
Dr. Christian Lathe
Andreas Ebert
