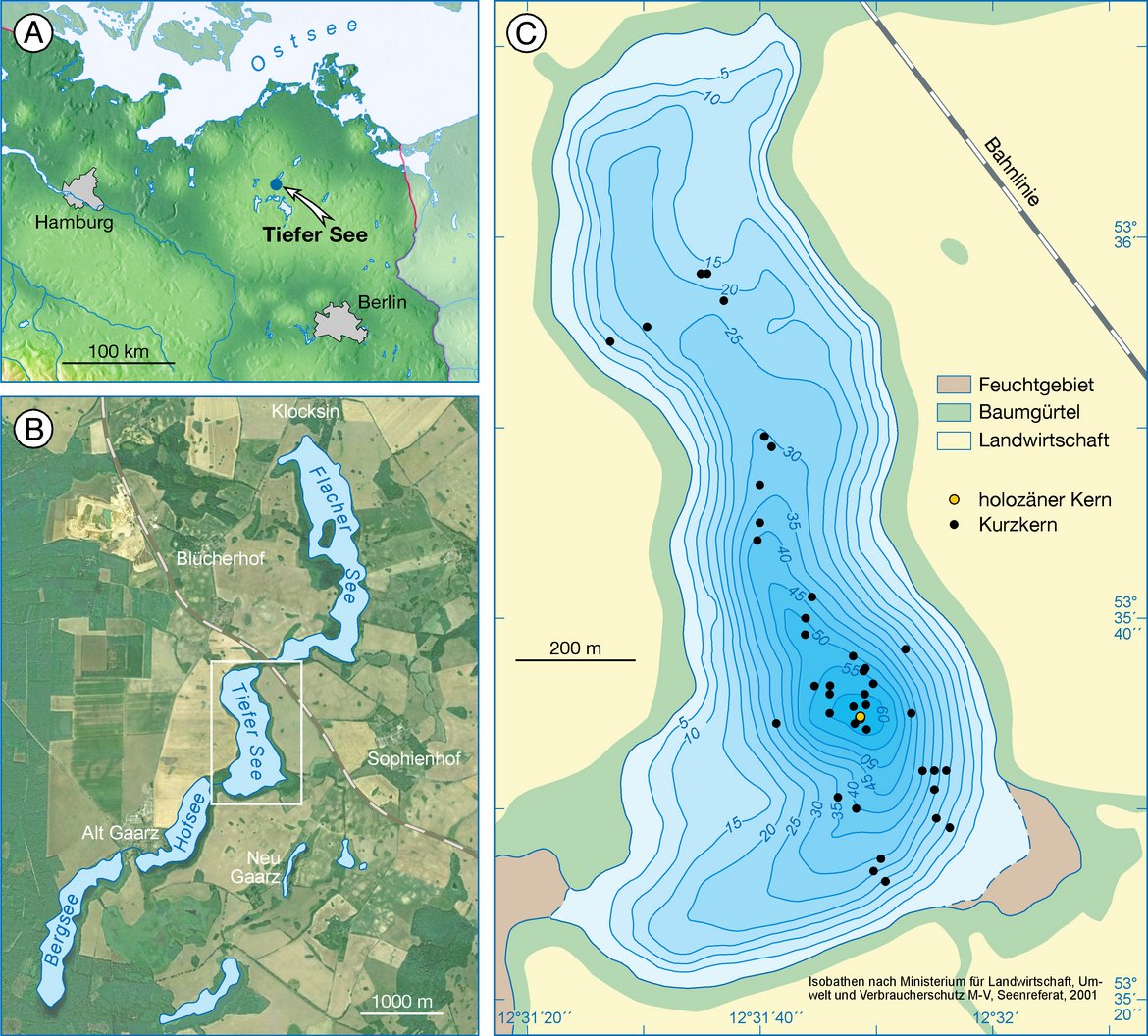

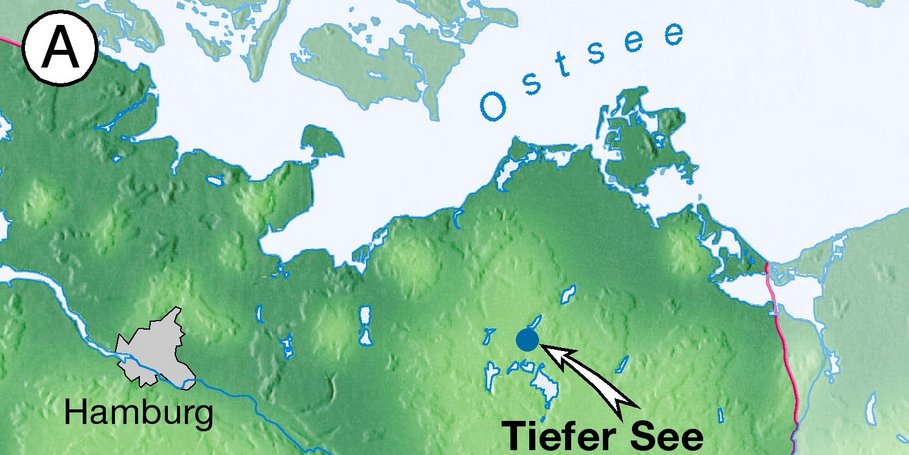

With our long-term and comprehensive monitoring at Lake Tiefer See in Mecklenburg-Western Pomerania with seasonally stratified (warved) sediments, we pursue two overarching goals: (1) measuring the effects of climate change on the lake system and (2) calibrating the sediment archives to reconstruct past climate and environmental changes with a seasonal time resolution.
The lake sediment monitoring at Lake Tiefer See for the integrated analysis of climate and landscape development is part of the TERENO Observatory Northeast Germany and has been in operation since 2012.

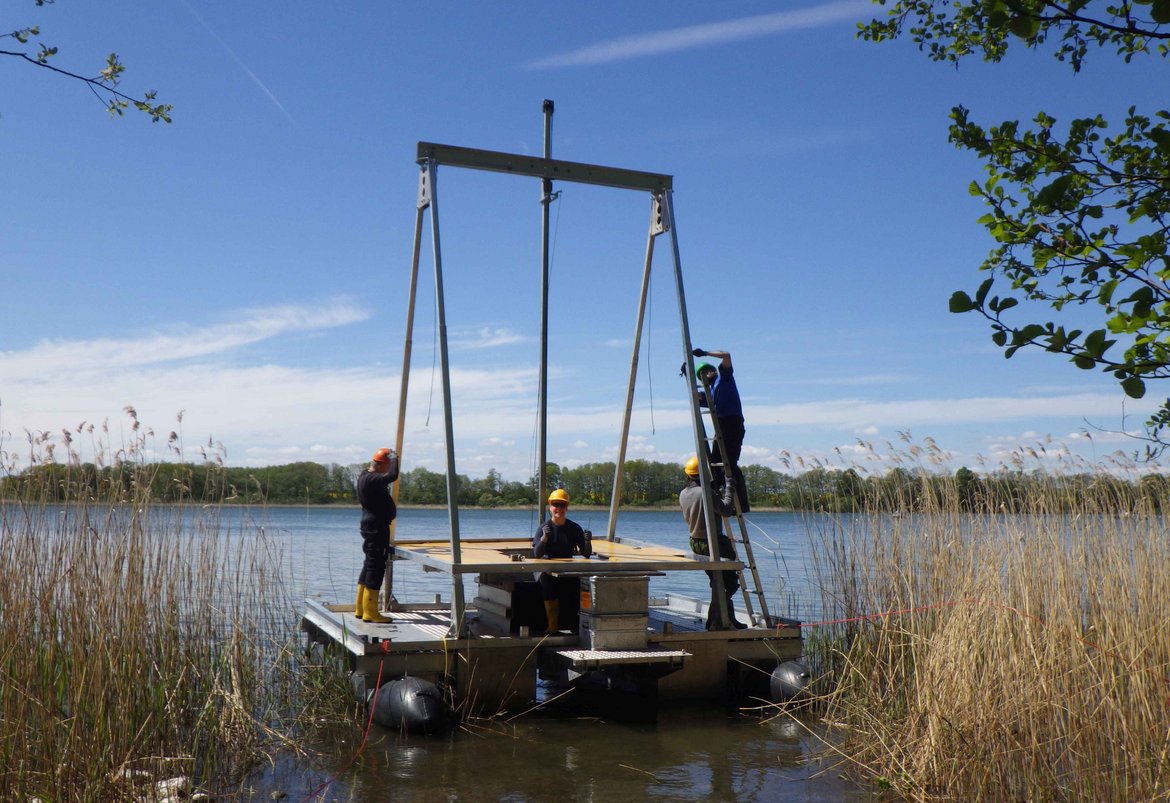

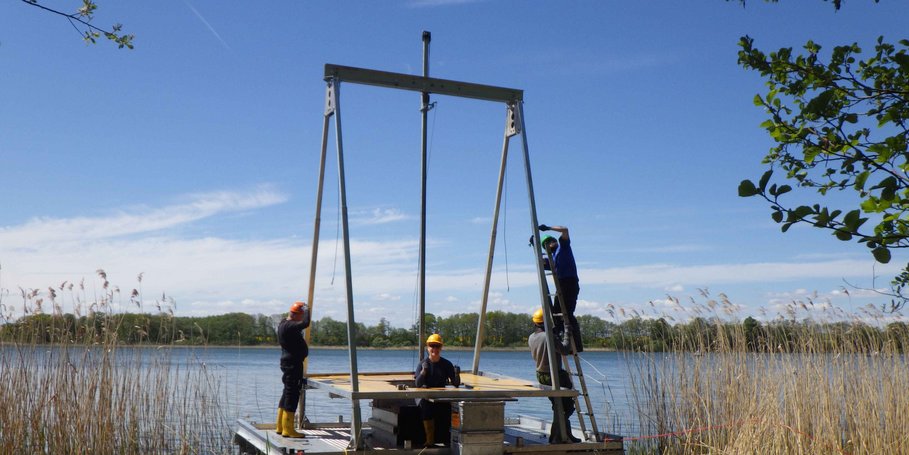

![[Translate to English:] Aufbau der Hybrid Bohrplattform am Tiefen See zur Gewinnung langer Kolbenlot Sedimentbohrkerne](/fileadmin/_processed_/3/0/csm_Hybridplattform_TieferSee_2019_5_Schwab_53400dd55e.jpg)
In order to obtain the necessary data and samples, the subsystems atmosphere, water body, sediment load and sediment deposition in the lake are recorded.
Weather station (WXT520, Vaisala)
- automatic measurement of meteorological parameters (air temperature, air pressure, precipitation, global radiation, PAR, wind direction and wind speed)
Precipitation collector (PALMEX)
- for determining the amount of precipitation and for isotopic analysis of the precipitation water
Dust collector, passive (Sigma 2)
- for analyzing the composition of dust

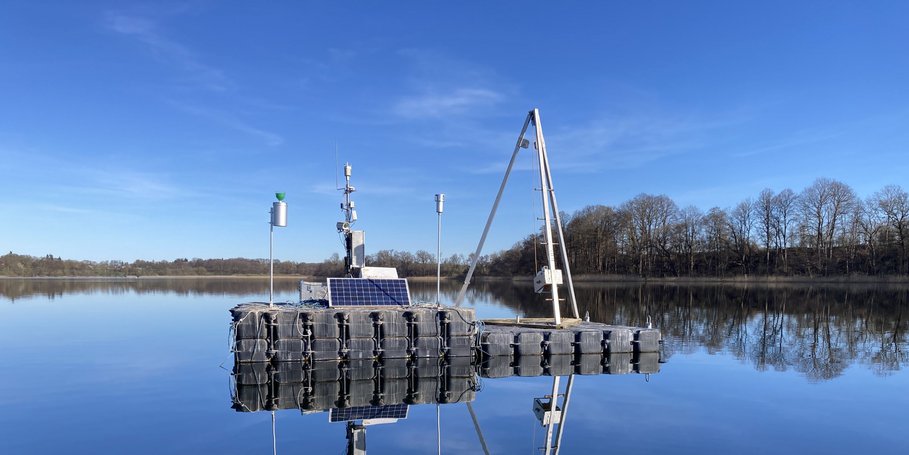

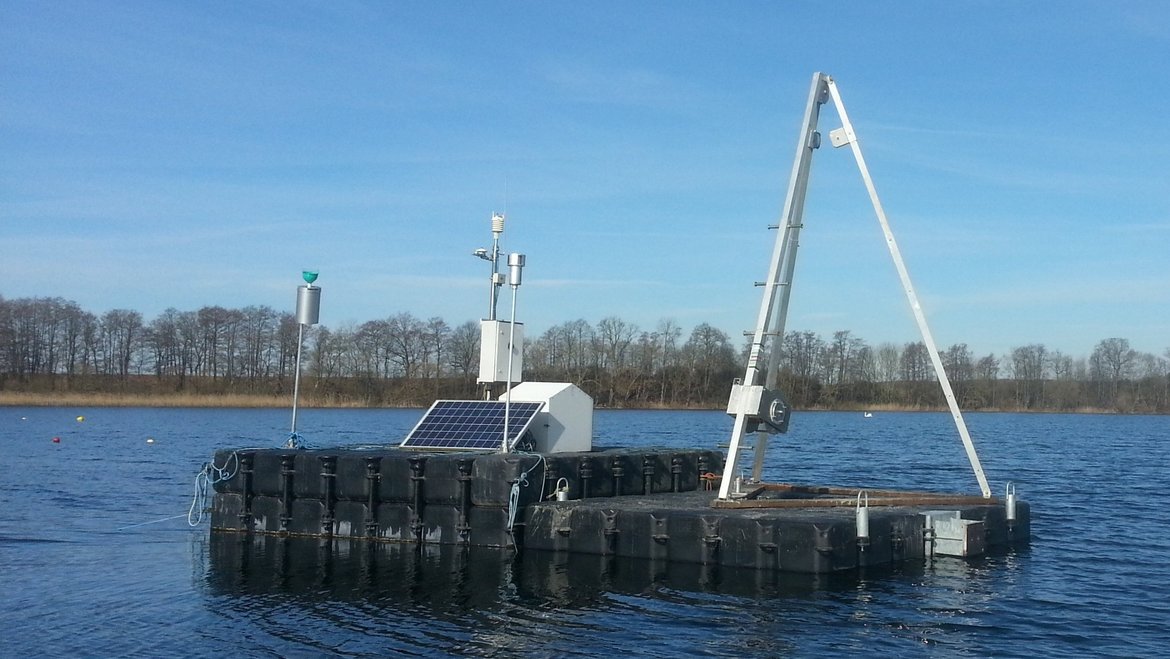

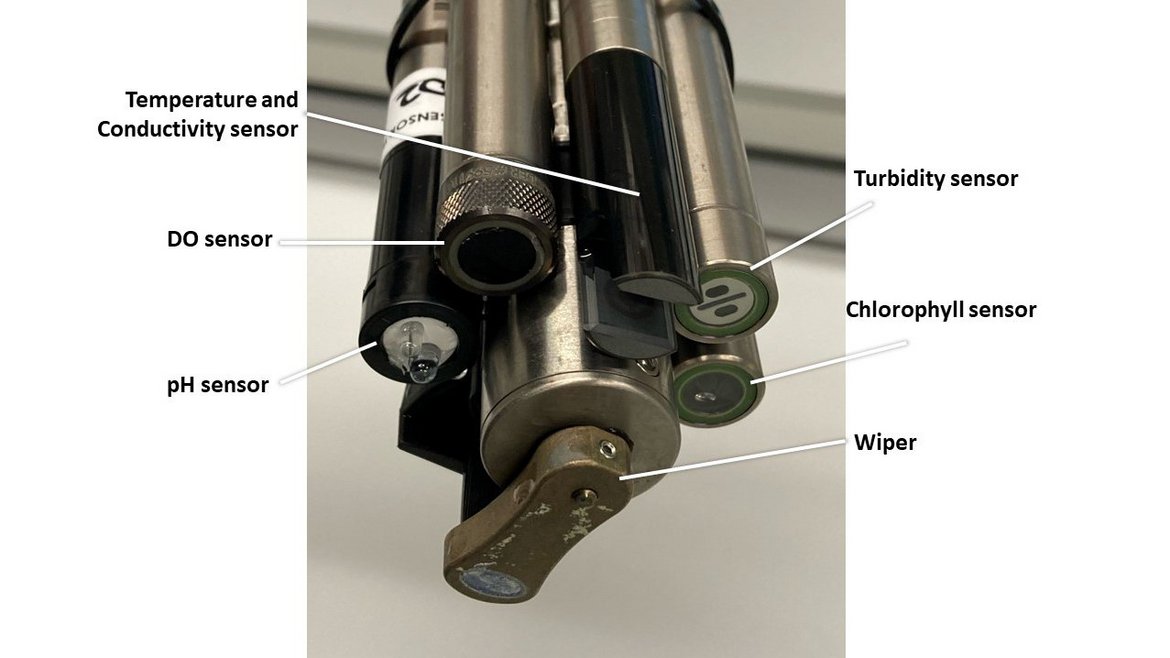

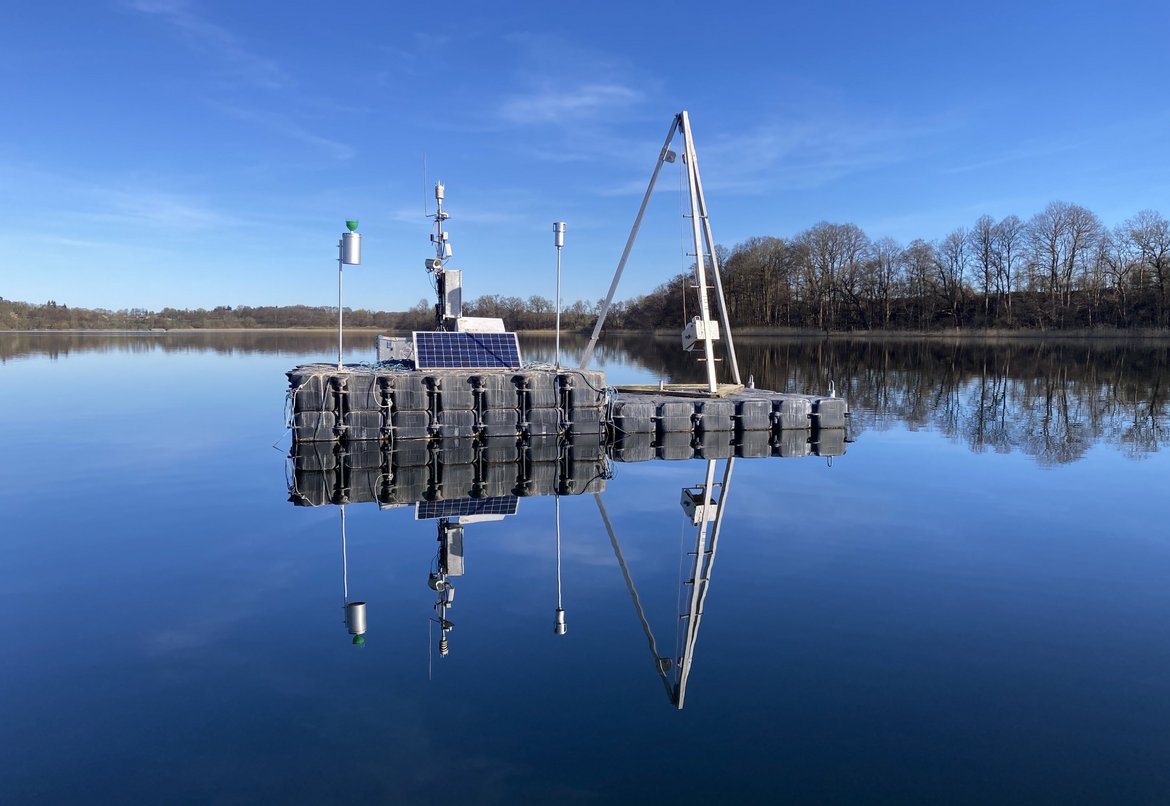

Profiler buoy with connected water probe (EXO2 - multiparameter probe)
- an anchored profiler buoy with EXO2 water probe for automatic measurement of the parameters at selected water depths: water temperature, pH value, conductivity, turbidity, oxygen content, redox potential and chlorophyll
Profiler connected with water probe (YSI-6600 v4)
- profiler with YSI6600 water probe for automatic measurement of the parameters at selected depths: water temperature, pH value, conductivity, turbidity, oxygen content, redox potential and chlorophyll

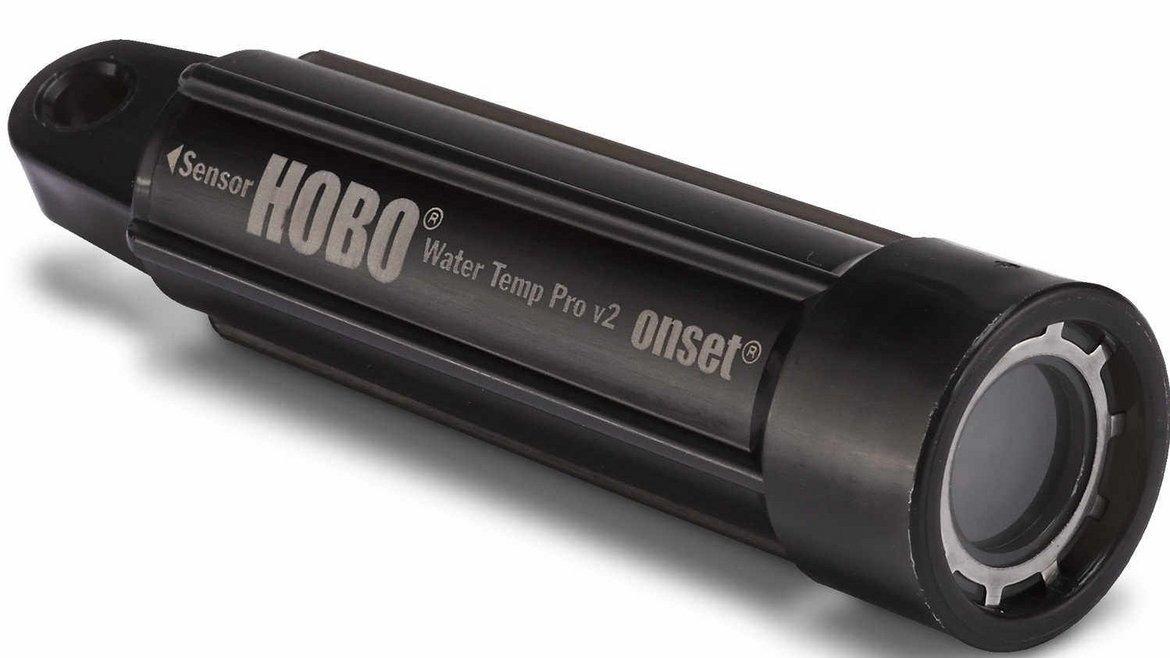

Temperature-logger chain (HOBO Water Temp Pro v2)
- for automatic measurement of the water temperature
Water sampling
- examination of lake water at selected water depths for water filtration and to determine water chemistry and water isotopy
Lake level height
- daily automatic data acquisition to determine the differences in lake level
Secchi depth
- visibility depth measurement
4-cylinder trap (KC Denmark A/S)
- sediment trap at 12m and 50m water depth for monthly analysis of sediment trap material

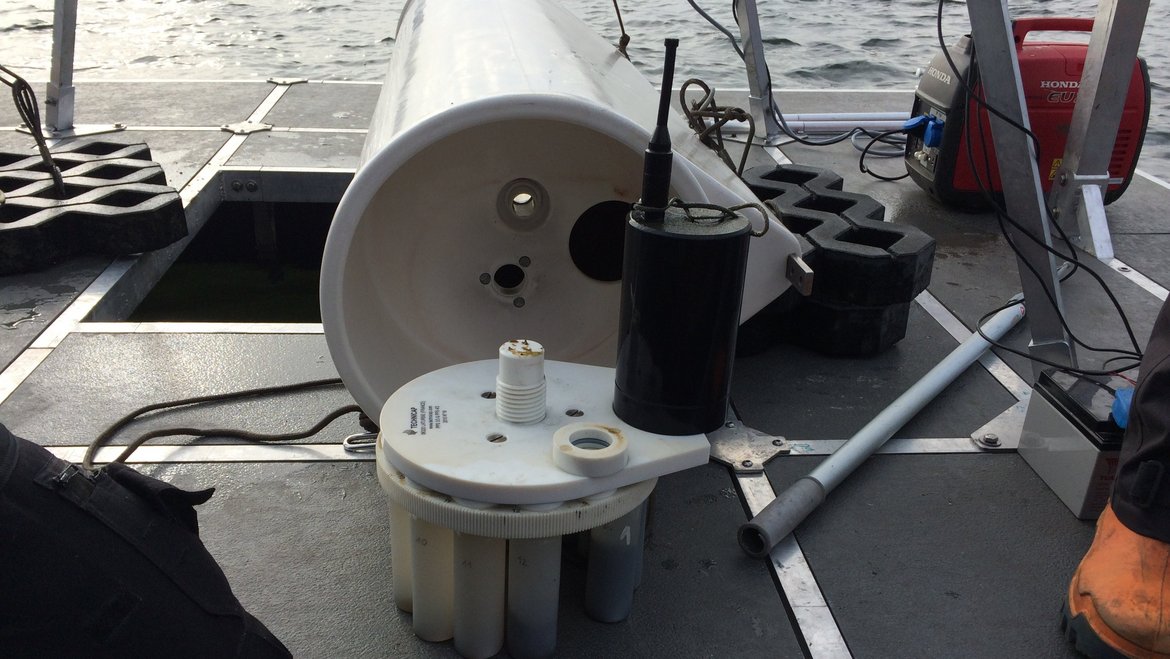

Sequential trap (TECHNICAP PPS 3/3)
- sediment trap in 50m water depth for automatic removal of sediment trap material

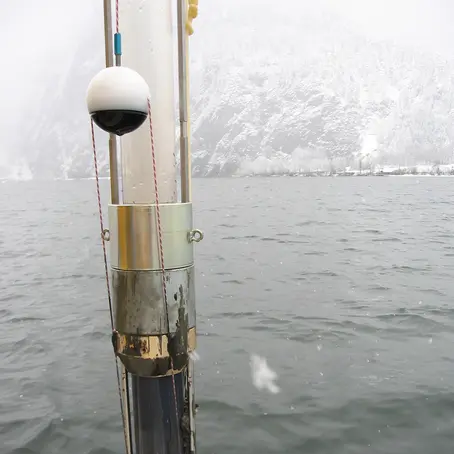

Short core gravity sampler (UWITEC company)
- sampling of the uppermost sediment layers with the highest degree of preservation of the annual layers (varves)
- maximum possible core extraction 200 cm

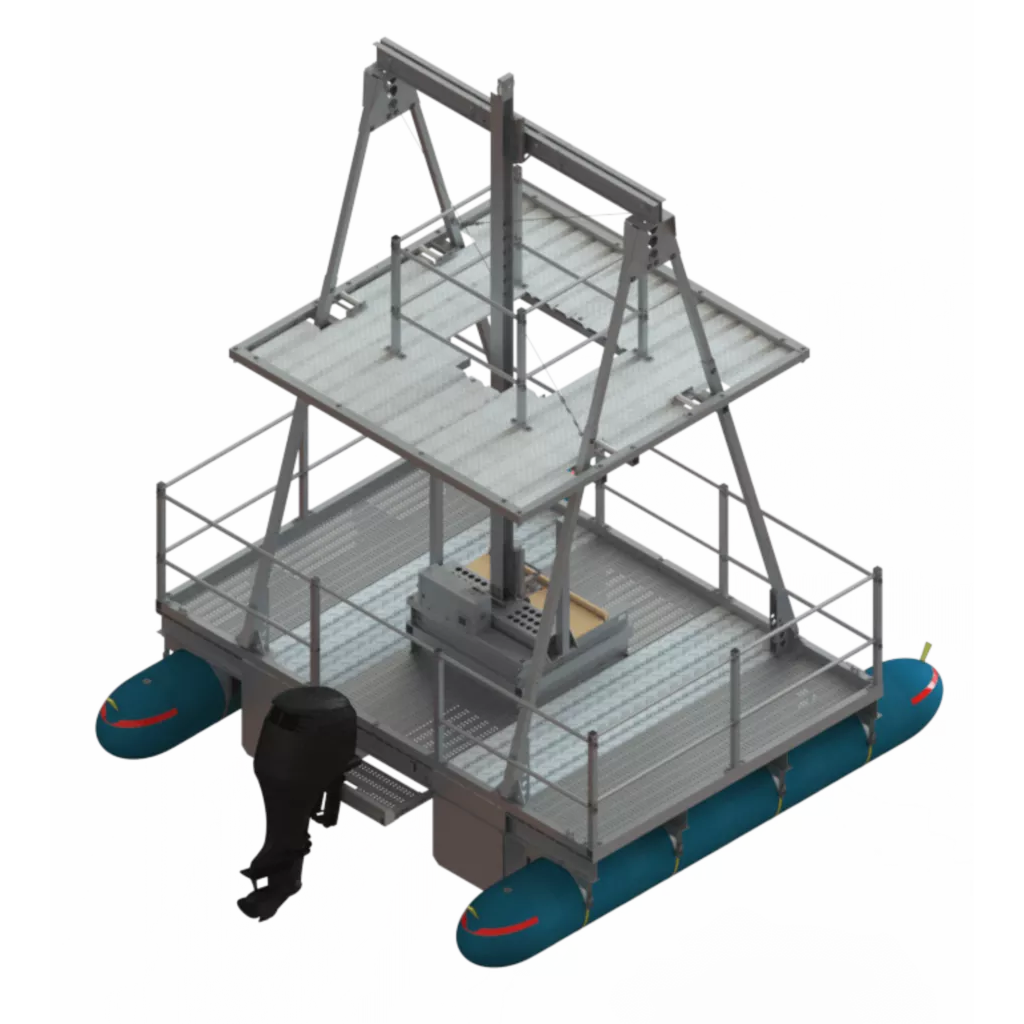

Hybrid drilling platform (UWITEC company)
- Extraction of undisturbed long sediment cores with the piston corer
- max. core length 25 m
- max. water depth 100 m
- Sirota, I., Tjallingii, R., Pinkerneil, S., Schroeder, B., Albert, M., Kearney, R., Heiri, O., Breu, S., and Brauer, A. (2024): Tracing rate and extent of human-induced hypoxia during the last 200 years in the mesotrophic lake, Tiefer See (NE Germany), Biogeosciences, 21, 4317–4339. https://doi.org/10.5194/bg-21-4317-2024
- Brauer, A., Heinrich, I., Schwab, M. J., Plessen, B., Brademann, B., Köppl, M., Pinkerneil, S., Balanzategui, D., Helle, G., Blume, T. (2022): Lakes and trees as climate and environment archives: the TERENO Northeastern German Lowland Observatory. - DEUQUA Special Publications, 4, 41-58. https://doi.org/10.5194/deuquasp-4-41-2022
- Nwosu, E.C., Brauer, A., Kaiser, J., Horn, F., Wagner, D., Liebner, S. (2021a). Evaluating sedimentary DNA for tracing changes in cyanobacteria dynamics from sediments spanning the last 350 years of Lake Tiefer See, NE Germany. Journal of Paleolimnology, 66: 279–296. https://doi.org/10.1007/s10933-021-00206-9
- Nwosu, E.C., Roeser, P., Yang, S., Ganzert, L., Dellwig, O., Pinkerneil, S., Brauer, A., Dittmann, E., Wagner, D., Liebner, S. (2021b). From Water into Sediment – Tracing Freshwatrer Cyanobacteria via DNA Analyses. Microorganisms, 9: 1778. https://doi.org/10.3390/microorganisms9081778
- Nwosu, E.C., Roeser, P., Yang, S., Pinkerneil, S. Dittmann, E., Brauer, A., Wagner, D., Liebner, S. (2021c). Species-Level Spatio-Temporal Dynamics of Cyanobacteria in a Hard-Water Temperate Lake in the Southern Baltics. Front. Microbiol., 12:761259. https://doi.org/10.3389/fmicb.2021.761259
- Theuerkauf, M., Blume, T., Brauer, A., Dräger, N., Feldens, P., Kaiser, K., Kappler, C., Kästner, F., Lorenz, S., Schult, M. (2021) Holocene lake-level evolution of Lake Tiefer See, NE Germany, caused by climate and land cover changes. Boreas. ISSN 0300-9483. https://doi.org/10.1111/bor.12561
- Roeser, P., Dräger, N., Brykała, D., Ott, F., Pinkerneil, S., Gierszewski, P., Lindemann, C., Plessen, B., Brademann, B., Kaszubski, M., Fojutowski, M., Schwab, M.J., Słowiński, M., Błaszkiewicz, M., Brauer, A. (2021). Advances in understanding formation of calcite varves: new insights from a dual lake monitoring approach. Boreas. https://doi.org/10.1111/bor.12506
- Nantke, C.K.M., Brauer, A., Frings, P.J., Czymzik, M., Hübener, T., Stadmark, J., Dellwig, O., Roeser, P., Conley, D.J. (2021). Human influence on the continental Si budget during the last 4300 years: δ30Sidiatom in varved lake sediments (Tiefer See, NE Germany). Quarternary Science Reviews 258: 106869. https://doi.org/10.1016/j.quascirev.2021.106869
- Dräger, N., Plessen, B., Kienel, U., Słowiński, M., Ramisch, A., Pinkerneil, S., Brauer, A. (2019). Relation of δ13C of sedimentary organic matter and varve preservation in the sediment record of Lake Tiefer See (NE Germany). Journal of Paleolimnology, 62:181–194. https://doi.org/10.1007/s10933-019-00084-2
- Brauer, A., Schwab, M. J., Brademann, B., Pinkerneil, S., Theuerkauf, M. (2019): Tiefer See – a key site for lake sediment research in NE Germany. - DEUQUA Special Publications, 2, 89-93. https://doi.org/10.5194/deuquasp-2-89-2019
- Czymzik, M., Muscheler, R., Adolphi, F., Mekhaldi, F., Dräger, N., Ott, F., Słowinski, M., Błaszkiewicz, M., Aldahan, A., Possnert, G., Brauer, A. (2018). Synchronizing 10Be in two varved lake sediment records to IntCal13 14C during three grand solar minima. Clim. Past, 14, 687–696. https://doi.org/10.5194/cp-14-687-2018
- Heinrich, I., Balanzategui, D., Bens, O., Blasch, G., Blume, T., Böttcher, F., Borg, E., Brademann, B., Brauer, A., Conrad, C., Dietze, E., Dräger, N., Fiener, P., Gerke, H.H., Güntner, A., Heine, I., Helle, G., Herbrich, M., Harfenmeister, M., Heußner, K.-U., Hohmann, C., Itzerott, S., Jurasinski, G., Kaiser, K., Kappler, C., Koebsch, F., Liebner, S., Lischeid, G., Merz, B., Missling, K.D., Morgner, M., Pinkerneil, S., Plessen, B., Raab, T., Ruhtz, T., Sachs, T., Sommer, M., Spengler, D., Stender, V., Stüve, P., Wilken, F. (2018). Interdisciplinary Geo-ecological Research across Time Scales in the Northeast German Lowland Observatory (TERENO-NE). Vadose Zone Journal. https://doi.org/10.2136/vzj2018.06.0116
- Kienel, U., Kirillin, G., Brademann, B., Plessen, B., Lampe, R., Brauer, A., (2017). Effects of spring warming and mixing duration on diatom deposition in the deep Tiefer See, NE Germany. Journal of Paleolimnology 57, 37–49. https://doi.org/10.1007/s10933-016-9925-z
- Dräger, N., Theuerkauf, M., Szeroczynska, K., Wulf, S., Tjallingii, R., Plessen, B., Kienel, U., Brauer, A. (2017): Varve microfacies and varve preservation record of climate change and human impact for the last 6000 years at Lake Tiefer See (NE Germany). - Holocene, 27, 3, 450-464. https://doi.org/10.1177/0959683616660173
- Heine, I., Brauer, A., Heim, B., Itzerott, S., Kasprzak, P., Kienel, U., Kleinschmit, B. (2017). Monitoring of calcite precipitation in hardwater lakes with multi-spectral remote sensing archives. Open Access Journal Water 9, 15. https://doi.org/10.3390/w9010015
- Szeroczyńska, K. (2016): Long term subfossil Cladocera record from the partly varved sediment of Lake Tiefer See (NE Germany). Advances in Oceanography and Limnology, 7(2). https://doi:10.4081/aiol.2016.6297
- Wulf, S., Dräger, N., Ott, F., Serb, J., Appelt, O., Guðmundsdóttir, E., van den Bogaard, C., Słowiński, M., Błaszkiewicz, M., Brauer, A. (2016): Holocene tephrostratigraphy of varved sediment records from Lakes Tiefer See (NE Germany) and Czechowskie (N Poland). - Quaternary Science Reviews, 132, 1-14. https://doi.org/10.1016/j.quascirev.2015.11.007
- Czymzik, M., Muscheler, R., Brauer, A., Adolphi, F., Ott, F., Kienel, U., Dräger, N., Słowiński, M., Aldahan, A., Possnert, G. (2015). Solar cycles and depositional processes in annual 10Be from two varved lake sediment records. Earth and Planetary Science Letters 428, 44-51. https://doi.org/10.1594/PANGAEA.848364
- Theuerkauf, M., Dräger, N., Kienel, U., Kuparinen, A., Brauer, A. (2015): Effects of changes in land management practices on pollen productivity of open vegetation during the last century derived from varved lake sediments. - Holocene, 25, 5, 733-744. https://doi.org/10.1177/0959683614567881
- Kienel, U.; Dulski, P.; Ott, F.; Lorenz, S.; Brauer, A. (2013): Recently induced anoxia leading to the preservation of seasonal laminae in two NE-German lakes. Journal of Paleolimnology, 50/4, 535-544. https://doi.org/10.1007/s10933-013-9745-3
